Rid-O-Rust® 30 Gal. Injection Feeder System

American Hydro Systems®

Rid-O-Rust® 30 Gal. Injection Feeder System

Dealer Exclusive

SKU:  2670
SKU:  2670

Precision Irrigation Treatment for Complex Systems

  • Automatically feeds Rid-O-Rust® stain preventer, NatureShield® pest control, and GrassSoGreen® fertilizers through the irrigation system
  • Designed for submersible well pumps, above-ground pumps, and larger or more complex irrigation systems
  • Adjustable metering pump delivers precise, controlled dosing based on system needs
  • Integrates with irrigation controllers to inject treatment only when the system is running
  • Ideal for properties where pressure, elevation, distance, or pump configuration make siphoning systems impractical
  • Includes 30-gallon tank and lid, metering pump, injection components, water test kit, and instruction manual
dealer locator

Precision Treatment for Complex Irrigation Systems

The Rid-O-Rust® 30-Gallon Injection System is designed for properties that need more control than a standard siphoning system can provide.

This system uses a metering pump to inject treatment directly into the irrigation line, helping apply the right amount of product when your sprinkler system runs. It is designed for use with submersible and above-ground well pumps, making it a flexible solution for larger properties, more complex irrigation layouts, and systems that need precise treatment.

Built for Systems That Need Professional Installation

Some irrigation systems require a higher level of setup, adjustment, and control. The 30-Gallon Injection System is required for submersible well pumps and is often the better choice for larger properties, higher-use irrigation systems, longer runs, elevation changes, or situations where precise dosing is important.

Because this system connects directly into the irrigation line and includes electrical and metering components, it should be installed by a licensed irrigation, plumbing, or water treatment professional. Professional installation helps ensure the system is connected correctly, adjusted properly, and set up to deliver consistent treatment for your specific water conditions.

WHY HOMEOWNERS CHOOSE THE 30-GALLON INJECTION SYSTEM

PROFESSIONAL-GRADE TREATMENT - Designed for more complex irrigation systems that require accurate, controlled product delivery

WORKS WITH MULTIPLE PUMP TYPES - Compatible with submersible and above-ground well pump systems when professionally installed

PRECISE PRODUCT DOSING - Uses an adjustable metering pump to help deliver the right amount of treatment for your property

AUTOMATIC OPERATION - Activates with your irrigation system, applying treatment only when your sprinklers are running

MADE FOR LARGER PROPERTIES - A strong option for high-use irrigation systems, larger landscapes, longer runs, and more demanding system layouts

CONSISTENT PERFORMANCE - Helps manage treatment even when pressure, distance, elevation, or system layout make simpler systems less effective

SUPPORTS MULTIPLE OUTDOOR SOLUTIONS - Can be used with Rid-O-Rust® Preventers, GrassSoGreen® Fertilizers, and NatureShield® Insect & Pest Repellent when used as directed

One System. Multiple Outdoor Benefits.

The 30-Gallon Injection System helps turn your irrigation system into a controlled treatment system for common outdoor concerns.

Rid-O-Rust® Preventers help stop rust stains and mineral buildup before they form. GrassSoGreen® Fertilizers help feed your lawn in small, steady doses. NatureShield® helps repel mosquitoes and other outdoor pests.

When used as directed, these treatments can be combined in the same tank, giving you a convenient way to protect outdoor surfaces, support a greener lawn, and make your yard more enjoyable through one professionally installed system.

Start With a Water Test

Water conditions vary from home to home, so testing is the best place to start. Measuring iron levels and pH helps determine the right Rid-O-Rust® formula and the correct dosage for your property.

A licensed professional can help test your water, select the right formula, install the system, and adjust the dosing so your treatment program is set up correctly from the beginning.

Professional Installation Required

The Rid-O-Rust® 30-Gallon Injection System is not a typical DIY installation. Because it involves irrigation line connections, a metering pump, system calibration, and electrical/controller integration, it should be installed and serviced by a licensed professional.

Working with a qualified contractor helps protect your irrigation system, improve treatment accuracy, and ensure your system is set up for reliable long-term performance.

Advanced Treatment for Demanding Properties

For larger properties, submersible pump systems, or irrigation layouts that need more precise control, the Rid-O-Rust® 30-Gallon Injection System delivers a professional-grade solution.

Use the Rid-O-Rust® 30-Gallon Injection System with a licensed contractor to help prevent stains, support your landscape, and get more consistent treatment from every irrigation cycle.

See Product Manual Below for Installation and Operating Instructions

Product Resources

Rid-O-Rust Injection System Manual (2025)
VIDEO: Stop Rust Stains Before They Start - Irrigation Solution

SKU Detail

SKU
2670
Size Default Title
Item UPC 8-18125-00222-5
Item Length 19 in
Item Width 19 in
Item Height 34.75 in
Item Weight 18.8 lb
Case Pack 8
Case UPC 818125002225

Customer Reviews

Reviews are viewed and verified before publication. Reviews marked with “Verified Buyer” were submitted by customers who purchased the item from our online shop.

Frequently Asked Questions

An injection feeder system should be used when the application involves a below-ground or submersible well pump. It is also suggested for larger above-ground pumps over 2 horsepower and in situations where frequent refilling of a siphoning system would be inconvenient.
The injection system is designed for applications with below-ground or submersible well pumps, and it is also a good fit for larger above-ground pumps. This makes it the preferred choice when a siphoning system is not practical for the irrigation setup.

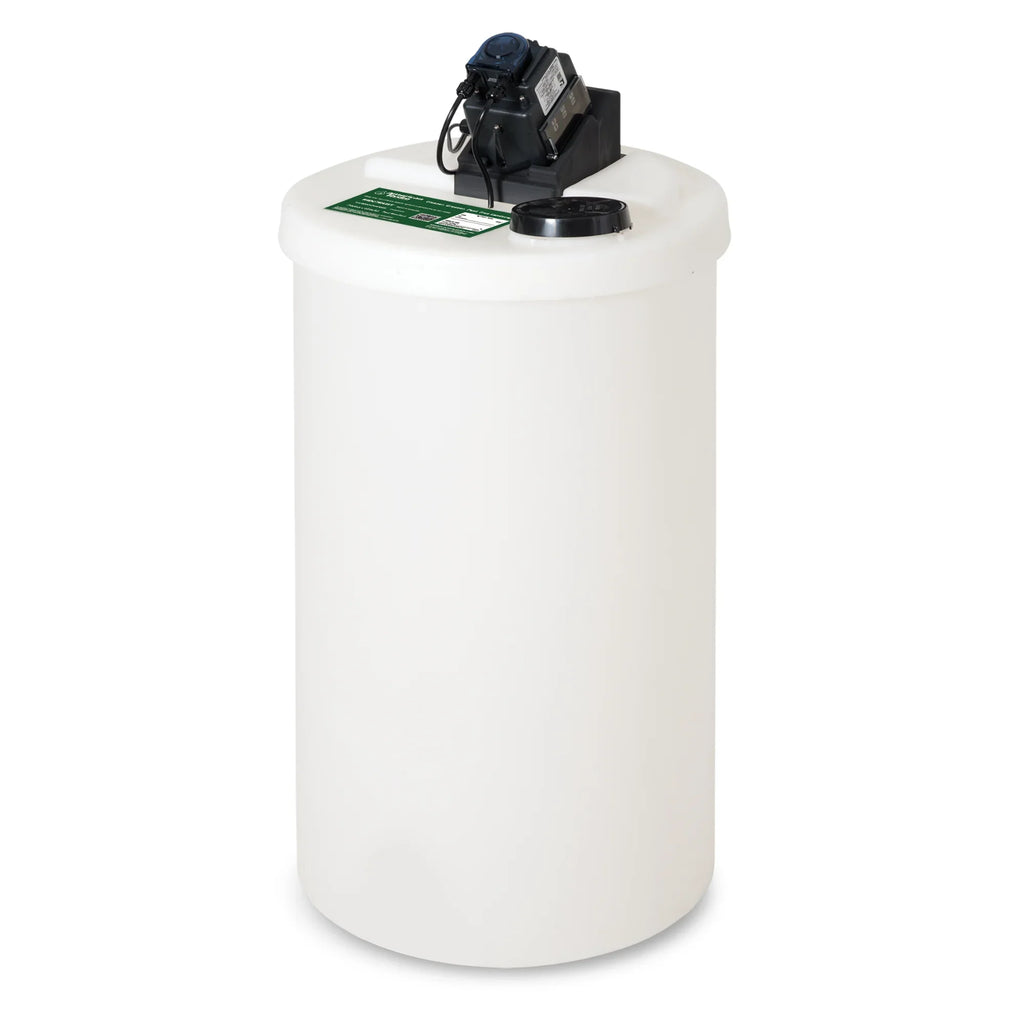

Part #2670 includes a 30-gallon tank and top, pump mounting base, adjustable 16 GPD digital 110-volt pump with a built-in pump start, 24-volt hook-up to the master valve and common of the irrigation timer, plus a well water test kit, instructions, and an owner’s manual.
For custom irrigation feeder system jobs, American Hydro offers 3 tank sizes—15 gallon, 30 gallon, and 100 gallon—and 3 metering pump options: the IPU-16 pump, the S10P pump, and the 2704 Pulsafeeder pump.
The system includes a limited one-year warranty against manufacturer defects from the date of installation. Pump tubes are not covered under this warranty.
Warranty or service issues related to the injection system pump are handled directly by Stenner Pump. Before requesting service, it is best to review the Injection System Owner’s Manual and Troubleshooting Guide, since those resources may help resolve the issue without repair.
